Python Software in Data 100¶
We will be using Python and Jupyter Notebooks for most of the class. You should take some time to learn how to use Jupyter and some of the keyboard shortcuts.
Software Packages¶
We will be using a wide range of different Python software packages. To install and manage these packages we will be using the Conda environment manager. The following is a list of packages we will routinely use in lectures and homeworks:
Linear Algebra¶
import numpy as np
Data manipulation¶
import pandas as pd
Visualization¶
import matplotlib.pyplot as plt
import seaborn as sns
%matplotlib inline
Interactivity¶
import ipywidgets as widgets
from ipywidgets import interact
Occasionally we will also use interactive visualization libraries like Plotly:
## Plotly plotting support
import plotly.offline as py
py.init_notebook_mode()
import plotly.graph_objs as go
import plotly.figure_factory as ff
import cufflinks as cf
cf.set_config_file(offline=True, world_readable=True, theme='ggplot')

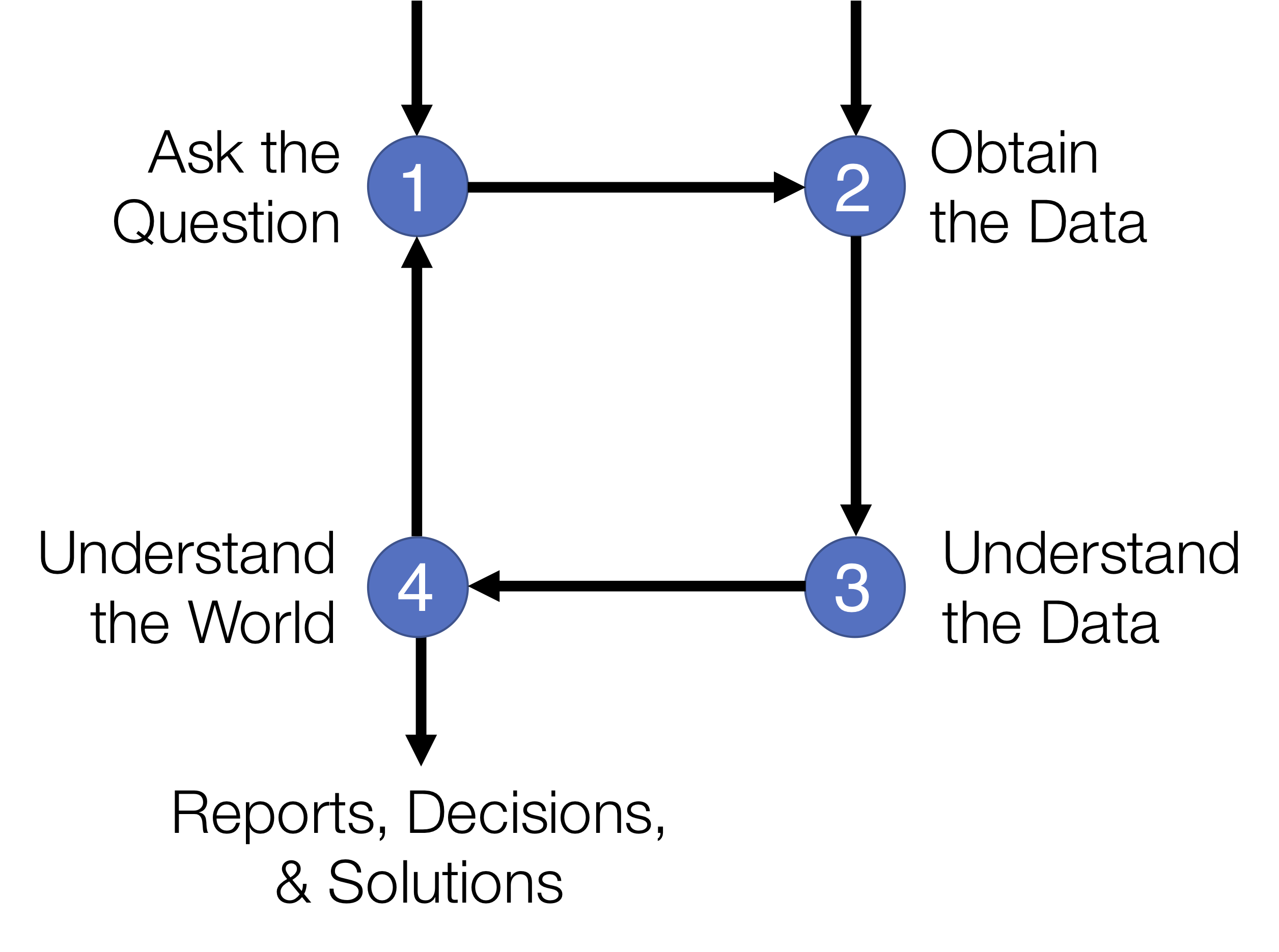

The Data Science Lifecycle¶
In this lecture we provide a sample of the various topics covered in DS100. In particular we will discuss key aspects of the data science lifecycle:
- Question/Problem Formulation:
- What do we want to know or what problems are we trying to solve?
- What are our hypotheses?
- What are our metrics of success?
- Data Acquisition and Cleaning:
- What data do we have and what data do we need?
- How will we collect more data?
- Is our data representative?
- How do we organize the data for analysis?
- Exploratory Data Analysis:
- How is our data organized and what does it contain?
- What are the biases, anomalies, or other issues with the data?
- How do we transform the data to enable effective analysis?
- Prediction and Inference:
- What does the data say about the world?
- Does it answer our questions or accurately solve the problem?
- How robust are our conclusions and can we trust the predictions?
Starting with a Question: Who are you (the students of DS100)?¶
This is a pretty vague question but let's start with the goal of learning something about the students in the class.
Data Acquisition and Cleaning¶
In DS100 we will study various methods to collect data.
To answer this question, I downloaded the course roster and extracted everyones names.
students = pd.read_csv("roster.csv")
students.head()
What are some of the issues that we will need to address in this data?
Answer:
- What is the meaning of Role
- Some names appear capitalized.
In the above sample we notice that some of the names are capitalized and some are not. This will be an issue in our later analysis so let's convert all names to lower case.
students['Name'] = students['Name'].str.lower()
students.head()
Exploratory Data Analysis¶
In DS100 we will study exploratory data analysis and practice analyzing new datasets.
How many records do we have:¶
A good starting point is understanding the size of the data.
Solution¶
print("There are", len(students), "students on the roster.")
Is this big data? (would you call this a "big class")
Answer
This would not normally constitute big data ... however this is a common data size for a lot of data analysis tasks.
Is this a big class? YES!
Is my data representative of the population I want to study?¶
Should we be worried about the sample size? Is this even a sample?
Answer:
This is (or at least was) a complete census of the class containing all the official students. We will learn more about data collection and sampling in the next lecture.
Understanding the structure of data¶
It is important that we understand the meaning of each field and how the data is organized.
students.head()
What is the meaning of the Role field?
Solution Understanding the meaning of field can often be achieved by looking at the types of data it contains (in particular the counts of its unique values).
students['Role'].value_counts().to_frame()
Summarizing the Data¶
We will often want to numerically or visually summarize the data. How can we summarize the name field?
In DS100 we will deal with many different kinds of data (not just numbers) and we will study techniques to diverse types of data.
A good starting point might be to examine the lengths of the strings.
sns.distplot(students['Name'].str.len(), rug=True, axlabel="Number of Characters")
The above density plot combines histograms with kernel density estimators and a rug plot to convey information about the distribution of name lengths.
In DS100 we will learn a lot about how to visualize data.
Does the above plot seem reasonable? Why might we want to check the lengths of strings.
Answer Yes the above plot seems reasonable for name lengths. We might be concerned if there were 0 or even 1 letter names as these might represent abbreviations or missing entries.
What does a name tell us about a person?¶
We normally don't get to pick our names but they can say a lot about us.
Question: What information might a name reveal about a person?
Here are some examples we will explore in this lecture:
- Gender
- Age
Obtaining More Data¶
To study what a name tells about a person we will download data from the United States Social Security office containing the number of registered names broken down by year, sex, and name. This is often called the baby names data as social security numbers are typically given at birth.
Note: In the following we download the data programmatically to ensure that the process is reproducible.
import urllib.request
import os.path
data_url = "https://www.ssa.gov/oact/babynames/names.zip"
local_filename = "babynames.zip"
if not os.path.exists(local_filename): # if the data exists don't download again
with urllib.request.urlopen(data_url) as resp, open(local_filename, 'wb') as f:
f.write(resp.read())

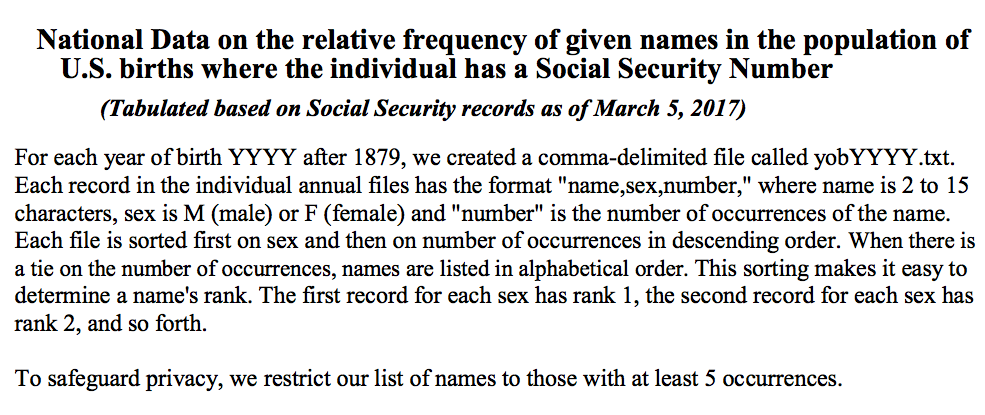

The data is organized into separate files in the format yobYYYY.txt with each file containing the name, sex, and count of babies registered in that year.
Loading the Data¶
Note: In the following we load the data directly into python without decompressing the zipfile.
In DS100 we will think a bit more about how we can be efficient in our data analysis to support processing large datasets.
import zipfile
babynames = []
with zipfile.ZipFile(local_filename, "r") as zf:
data_files = [f for f in zf.filelist if f.filename[-3:] == "txt"]
def extract_year_from_filename(fn):
return int(fn[3:7])
for f in data_files:
year = extract_year_from_filename(f.filename)
with zf.open(f) as fp:
df = pd.read_csv(fp, names=["Name", "Sex", "Count"])
df["Year"] = year
babynames.append(df)
babynames = pd.concat(babynames)
Understanding the Setting¶
In DS100 you will have to learn about different data sources on your own.
Reading from SSN Office description:
All names are from Social Security card applications for births that occurred in the United States after 1879. Note that many people born before 1937 never applied for a Social Security card, so their names are not included in our data. For others who did apply, our records may not show the place of birth, and again their names are not included in our data.
All data are from a 100% sample of our records on Social Security card applications as of March 2017.Examining the data:
babynames.head()
In our earlier analysis we converted names to lower case. We will do the same again here:
babynames['Name'] = babynames['Name'].str.lower()
babynames.head()
How many people does this data represent?
format(babynames['Count'].sum(), ',d')
len(babynames)
Is this number low or high?
Answer
It seems low. However the social security website states:
All names are from Social Security card applications for births that occurred in the United States after 1879. **Note that many people born before 1937 never applied for a Social Security card, so their names are not included in our data.** For others who did apply, our records may not show the place of birth, and again their names are not included in our data. All data are from a 100% sample of our records on Social Security card applications as of the end of February 2016.Temporal Patterns Conditioned on Gender¶
In DS100 we still study how to visualize and analyze relationships in data.
In this example we construct a pivot table which aggregates the number of babies registered for each year by Sex.
pivot_year_name_count = pd.pivot_table(babynames,
index=['Year'], # the row index
columns=['Sex'], # the column values
values='Count', # the field(s) to processed in each group
aggfunc=np.sum,
)
pivot_year_name_count.head()
We can visualize these descriptive statistics:
pink_blue = ["#E188DB", "#334FFF"]
with sns.color_palette(sns.color_palette(pink_blue)):
pivot_year_name_count.plot(marker=".")
plt.title("Registered Names vs Year Stratified by Sex")
plt.ylabel('Names Registered that Year')
In DS100 we will learn to use many different plotting technologies.
pivot_year_name_count.iplot(
mode="lines+markers", size=8, colors=pink_blue,
xTitle="Year", yTitle='Names Registered that Year',
filename="Registered SSN Names")
pivot_year_name_nunique = pd.pivot_table(babynames,
index=['Year'],
columns=['Sex'],
values='Name',
aggfunc=lambda x: len(np.unique(x)),
)
pivot_year_name_nunique.iplot(
mode="lines+markers", size=8, colors=pink_blue,
xTitle="Year", yTitle='Number of Unique Names',
filename="Unique SSN Names")
Some observations:
- Registration data seems limited in the early 1900s. Because many people did not register before 1937.
- You can see the baby boomers.
- Females have greater diversity of names.
Estimating the Sex of a Baby Given it's Name¶
We can use the baby names dataset to compute the total number of babies with each name broken down by Sex.
sex_counts = pd.pivot_table(babynames, index='Name', columns='Sex', values='Count',
aggfunc='sum', fill_value=0., margins=True)
sex_counts.head()
For each name we would like to estimate the probability that the baby is Female.
We can calculate this estimator from the data:
prob_female = sex_counts['F'] / sex_counts['All']
prob_female.head()
Testing the function:
prob_female["joey"]
prob_female["fernando"]
prob_female["nhi"]
prob_female["sona"]
We can define a function to return the most likely Sex for a name.
def sex_from_name(name):
lower_name = name.lower()
if lower_name in prob_female.index:
return 'F' if prob_female[lower_name] > 0.5 else 'M'
else:
return "Unknown"
sex_from_name("Joey")
Estimating the faction of Females in DS100¶
Can we use the Baby Names data?¶
What fraction of the student names are in the baby names database:
names = pd.Index(students["Name"]).intersection(prob_female.index)
print("Fraction of names in the babynames data:" , len(names) / len(students))
Applying the sex_from_name function to all students¶
We can apply the sex_from_name function to all students in the class to estimate the number of male and female students.
count_by_sex = students['Name'].apply(sex_from_name).value_counts().to_frame()
count_by_sex
Using the above we can estimate the fraction of female students in the class
count_by_sex.loc['F'] / (count_by_sex.loc['M'] + count_by_sex.loc['F'])
- How do we feel about this estimate?
- Do we trust it?
Using simulation to estimate uncertainty¶
Below we build a primitive estimate of the uncertainty in our model by simulating the Sex of each student according to the baby names dataset.
def simulate_class(students):
p = prob_female.loc[students['Name']].dropna()
is_female = np.random.rand(len(p)) < p
return np.mean(is_female)
propritions = np.array([simulate_class(students) for n in range(1000)])
sns.distplot(propritions, rug=True, axlabel="Number of Characters")
Bonus Material: Does you name reveal your age?¶
In the following cell we define a variable for your name. Feel free to download the notebook and follow along.
Distribution of a Name over Time¶
We want to estimate the probability of being born in a particular year given someone's name. To construct this estimate for each name we need to compute the number of babies born each year with that name.
In the following code block we use the pivot_table expression to compute the total number of babies born with a given name for each year.
name_year_pivot = babynames.pivot_table(
index=['Year'], columns=['Name'], values='Count', aggfunc=np.sum)
name_year_pivot.head()
Notice that there are a lot of NaN values. These correspond to names that didn't occur in that year.
To estimate the probability of being born in a year given the name we need to compute:
$$ \Large \hat{\textbf{P}\hspace{0pt}}(\texttt{Year} \,\,\, | \,\,\, \texttt{Name} ) = \frac{\textbf{Count}(\texttt{Year and Name})}{\textbf{Count}(\texttt{Name})} $$For names that never occured we will replace the NaN with probability 0.0 using fillna.
prob_year_given_name = name_year_pivot.div(name_year_pivot.sum()).fillna(0.0)
prob_year_given_name.head()
Visualizing the $\hat{\textbf{P}\hspace{0pt}}(\texttt{Year} \,\,\, | \,\,\, \texttt{Name} )$¶
In the following we visualize the probability of names over time:
prob_year_given_name[["joey", "fernando", "joyce", "deb"]].iplot(
mode="lines+markers", size=8, xTitle="Year", yTitle='Proportion',
filename="Name Popularity")
Notice that some names are spread over time while others have more specific times when they were popular.
prob_year_given_name[["keisha", "kanye", "nemo"]].iplot(
mode="lines+markers", size=8, xTitle="Year", yTitle='Poportion',
filename="Name Popularity2")
Notice that Kanye was popular in 2004 and "Finding Nemo" came out in 2003.
Ideally, we would run a census collecting the age of each student. What are limitations of this approach?
- It is time consuming/costly to collect this data.
- Students may refuse to answer.
- Students may not answer truthfully.
What fraction of the student names are in the baby names database:
names = pd.Index(students["Name"]).intersection(prob_year_given_name.columns)
print("Fraction of names in the babynames data:" , len(names) / len(students))
Simulation¶
In Data8 we relied on simulation. Here we define a function to simulate the age of a baby given it's name by sampling from the distribution that we estimated above.
def simulate_age_given_name(name):
years = prob_year_given_name.index.values
return np.random.choice(years, size=1, p = prob_year_given_name.loc[:, name])[0]
Let's simulate a date of birth for Professor Gonzalez.
simulate_age_given_name("joey")
The following function then simulates the date of birth for all the students in the class.
def simulate_class_avg_age(names):
return np.mean([simulate_age_given_name(n) for n in names])
simulate_class_avg_age(names)
We can run this function many times to compute the distribution over the average ages of the class. How many times should we run?
dist_avg_age = np.array([simulate_class_avg_age(names) for c in range(200)])
# sns.distplot(dist_avg_age)
f = ff.create_distplot([dist_avg_age], ["Class Ages"],bin_size=0.25)
py.iplot(f)
We have just constructed a Monte Carlo simulation of the average ages of the class under the estimates that we constructed.
Is this a good estimator?¶
- How many of you were born around 1983?
- How many of you were born before 1988?
- Our age distribution looked at the popularity of a name through all time. Who was born before 1890?
- Students are likely to have been born much more recently.
How can we incorporate this knowledge.
lthresh = 1985
uthresh = 2005
prior = pd.Series(0.000001, index = name_year_pivot.index, name="prior")
prior[(prior.index > lthresh) & (prior.index < uthresh)] = 1.0
prior = prior/np.sum(prior)
prior.plot()
Incorporating the Prior Belief into our Model¶
We apply Bayes rule to capture our prior knowledge.
$$\large P(y \,|\, n) = \frac{P(n\, | \, y) P(y)}{P(n)} $$Time permitting we will cover some basics of Bayesian modeling in DS100.
year_name_pivot = babynames.pivot_table(
index=['Name'], columns=['Year'], values='Count', aggfunc=np.sum)
prob_name_given_year = year_name_pivot.div(year_name_pivot.sum()).fillna(0)
u = (prob_name_given_year * prior)
posterior = (u.div(u.sum(axis=1), axis=0)).fillna(0.0).transpose()
posterior_age_dist = np.mean(posterior[names],axis=1)
posterior_age_dist.iplot(xTitle="Year", yTitle="P(Age of Student)")
post_class_ages = []
for i in range(10000):
post_class_ages.append(
np.mean(np.random.choice(posterior_age_dist.index.values, size=len(names),
p=posterior_age_dist)))
print(np.percentile(post_class_ages, [2.5, 50, 97.5]))
f = ff.create_distplot([post_class_ages], ["Posterior Class Ages"],bin_size=0.25)
py.iplot(f)
